BRENDAN YOUNG and BRYCE BROCK, NOV
Today’s drilling operations place greater demands on equipment to reliably drill longer laterals under higher sustained pressures, abrasive downhole conditions and elevated utilization rates. Mud pumps, which are central to a rig’s circulation system, are expected to operate for longer periods under these more challenging conditions. This is prompting operators and drilling contractors to evaluate pump designs that extend component life, enable more predictable maintenance schedules and improve overall performance.
In many designs, both the power end and fluid end are capable of higher-pressure operation; however, fluid end wear increases disproportionately with pressure and utilization, making it the dominant factor in maintenance planning. This is largely because traditional fluid end designs, although proven over decades of service and capable of operating at these pressures, were not optimized for sustained high-pressure, high-utilization conditions.
Extended duty cycles, combined with discharge pressures nearing or exceeding 7,500 psi, place significant demands on fluid end components that can accelerate wear, increase maintenance frequency and restrict operational efficiency. As a result, operators frequently must balance performance with maintenance demands, managing consumable life, inspection schedules, and equipment downtime as part of their routine operations.

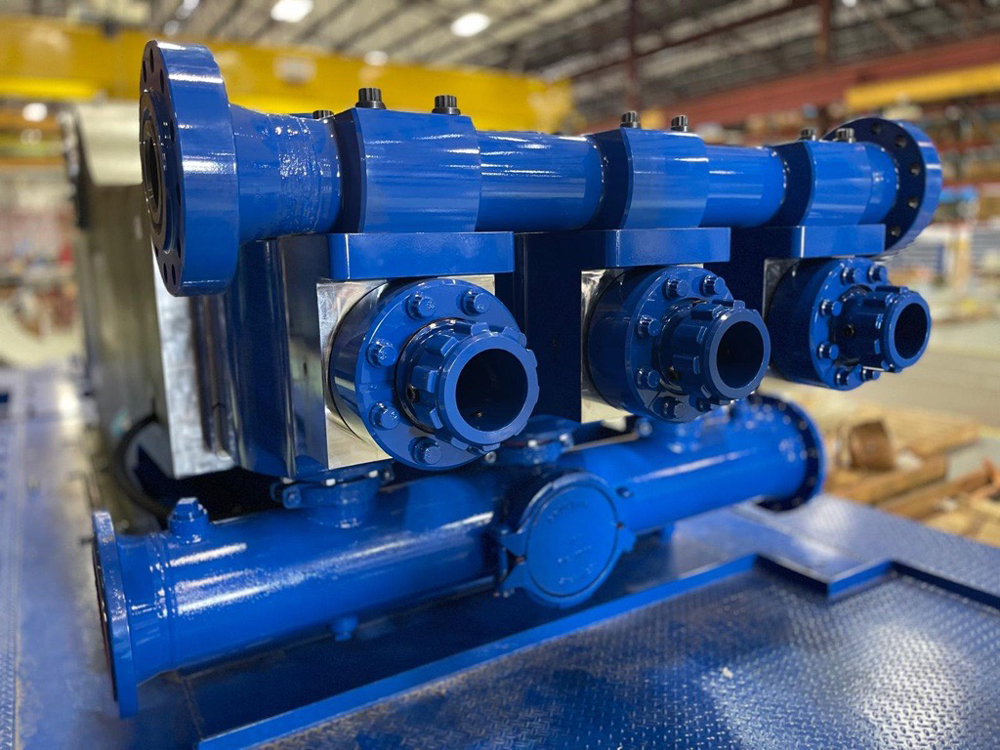

Addressing these challenges requires more than just incremental improvements to existing designs. NOV adopted a first-principles design approach to develop the Blak-JAK PowerLast fluid end, Fig. 1, redefining functional requirements around valve stability and flow behavior under high-velocity, high-pressure fluid conditions. The focus on valve design and flow profiling created an opportunity to reduce valve size, which enabled the development of a more compact, lightweight fluid end architecture with improved serviceability and component interchangeability across pump platforms. This approach also supports extended service intervals and more efficient fleet maintenance in modern drilling environments.
This article reviews the design considerations and development process for creating a new fluid end for higher-pressure drilling operations, as well as the initial field results from a drilling operation in the Marcellus shale.
EVOLUTION OF FLUID END DESIGN
Historically, fluid end design was driven by the need to balance performance, durability and serviceability. Conventional architectures, often characterized by valve-over-valve designs or L-shaped flow paths and established valve configurations, have provided reliable performance across a wide range of applications. However, these designs are inherently constrained by the relationship between valve function and overall system geometry.
Traditional valve designs closely couple the functions of alignment and sealing. The front of the valve must ensure both proper sealing against the seat and stability in position during operation. This constraint limits the ability to optimize the internal flow path, often leading to increased turbulence, localized pressure changes and less efficient fluid flow through the system.
While these limitations may be less pronounced at lower pressures and duty cycles, they become increasingly significant as operating conditions intensify, with increased turbulence and pressure variations contributing to accelerated wear. In traditional designs, valve size is driven by flow rate, while pressure requirements govern structural demands. Together, these factors drive overall assembly size and weight. In high-horsepower applications, where both flow and pressure are elevated, these effects combine to produce larger, heavier fluid ends that increase safety risks and maintenance complexity.
Consequently, further progress demands a fundamental shift in design philosophy instead of just refinements or scaling of existing configurations.
A BACK-TO-BASICS DESIGN APPROACH
Recent development efforts have focused on reengineering fluid end systems from first principles to better align with modern operating realities. Instead of modifying legacy designs for higher pressures and utilization rates, this approach begins by defining the system's core functional requirements.
Key considerations include how the valve interacts with the fluid stream, how stable operation is maintained along with service intervals, and the practical realities of maintaining equipment across a fleet of pumps. By analyzing valve behavior, how forces are transmitted through the fluid end, how components interact under cyclic loading and how maintenance is performed in the field, engineers can identify opportunities to simplify and optimize the design.
This methodology also emphasizes system-level performance. Rather than viewing the valve, module and manifolds as isolated elements, the design process considers how each element contributes to overall efficiency, reliability and serviceability.
The result is a fluid end architecture unconstrained by legacy geometries, reflecting the specific demands of high-pressure, high-utilization drilling operations.
RETHINKING VALVE ARCHITECTURE
A central element of this design approach is the reconfiguration of the valve assembly. Drawing on years of field experience and an iterative design-and-testing process, NOV engineers developed a valve architecture that repositions primary alignment control to the rear of the valve.
In many conventional designs, valve alignment is maintained, using features at both the front and rear of the valve to ensure stability during operation. While effective, this approach constrains the geometry at the front of the valve, as it must accommodate both alignment and sealing functions. In the revised design, primary alignment is controlled at the rear of the valve, allowing the front profile to be decoupled from alignment requirements and optimized for flow behavior. This enables the valve geometry to be shaped, such that the fluid flow itself contributes to stability under high-velocity conditions, reducing reliance on front-end alignment features.

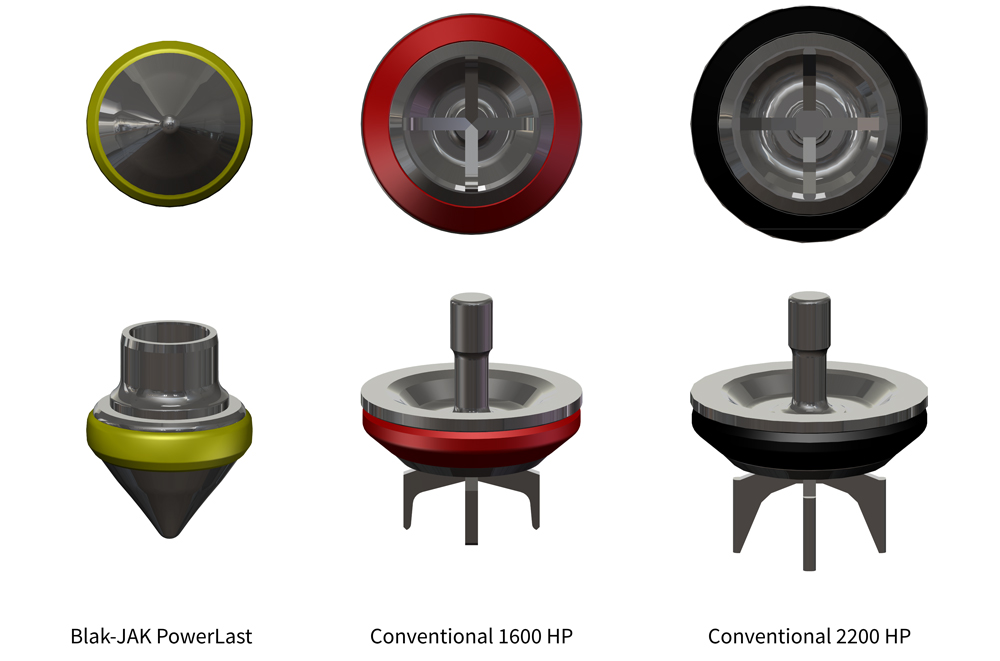

This valve design is smaller and lighter than conventional valves without compromising performance, Fig. 2. The reduced mass and optimized valve profile improve responsiveness, contributing to overall system efficiency.

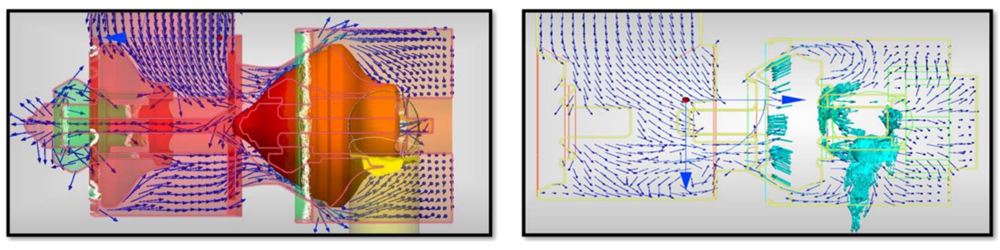

Computational fluid dynamics (CFD) analysis was used to evaluate valve geometry and sizing, Fig. 3. Comparison with conventional designs showed that valve size could be reduced while maintaining stable operation. Conventional valve designs often feature a broader, umbrella-like geometry, which can produce less uniform flow as fluid passes the leading edge, compared to the optimized design.
With alignment no longer constrained by front-end geometry, the valve profile can be optimized to promote smoother flow, reducing turbulence and minimizing pressure spikes during operation. Improved flow patterns lead to more consistent pressure distribution, reduced dynamic loading on components and extended service life.
FROM VALVE INNOVATION TO SYSTEM-LEVEL IMPACT

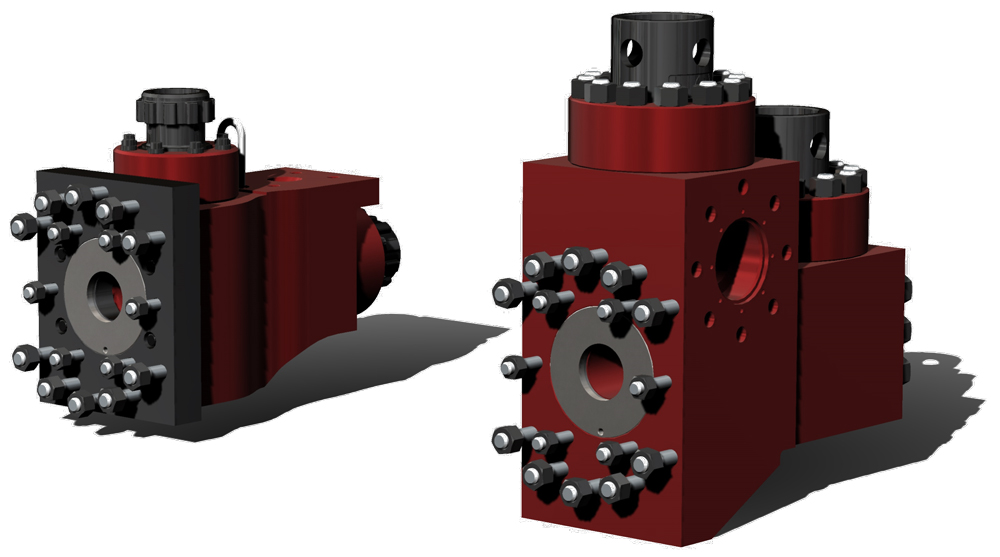

The valve architecture extends benefits beyond the valve itself. By enabling improved flow behavior and reducing geometric constraints, the design reduces bore sizes within the fluid module. This leads to smaller, more compact modules, which in turn reduce the overall size and weight of the fluid end assembly, Fig. 4. In some configurations, this can result in weight reductions of 30% or more, compared to traditional designs.
Furthermore, the modular design enables greater standardization across different pump platforms. Model-specific adapter plates and manifolds enable standardized modules and consumables to be used across pump models, reducing the variety of consumables required and simplifying inventory management. This standardization is particularly valuable in high-activity environments, where minimizing logistical complexity is critical.
TESTING AND VALIDATION
To validate the performance of the redesigned fluid end architecture, NOV engineers conducted a comprehensive test program on a 14-P-220 mud pump platform. The program included several hundred hours of operation across multiple phases, with extensive testing conducted at elevated pressures exceeding typical field operating conditions.
Extensive testing was performed at the NOV Springett Technology Center in Navasota, Texas, with water-based drilling mud passing through the pump at varying speeds and pressures to simulate real-world operating conditions. The program evaluated multiple iterations of the valve design as well as the performance of fluid end modules, seals and associated components.
The results confirmed that the fluid end system performs effectively in both 7,500-psi
service and higher-pressure applications up to 10,000 psi. Expendable component performance was comparable to, and in some cases exceeded, that of existing high-pressure fluid end designs, despite a substantially smaller and lighter architecture.
Importantly, the iterative nature of the testing process allowed for continuous refinement of the design. Observations from each phase informed subsequent modifications, resulting in a final configuration that reflects both analytical insights and practical performance data.
PROVING PERFORMANCE GAINS IN THE FIELD
The successful results of the controlled testing prompted a drilling contractor in the Marcellus shale to deploy the fluid end system in its field operations to assess performance under sustained high-utilization conditions. The trial also aimed to validate the fluid end’s resistance to washouts and fatigue cracking and benchmark performance against other OEM modules, particularly regarding its ability to extend the operating life of expendable components in a harsh drilling environment.
During drilling, pumps were operating at pressures of up to 7,300 psi to circulate a diesel-based oil-based mud (OBM). The fluid contained additional chemical additives, such as calcium chloride, calcium hydroxide, barium sulfate, gilsonite, and emulsifiers. The retort solids content was reported as 38%.
The fluid end was installed on a 1,600-hp mud pump using a 4.75-in. liner and a 12-in. stroke. Two other pumps with conventional fluid ends were also used in the trial.
After 16 months of operation, the drilling contractor observed a 10% to 20% increase in volumetric efficiency in the pump with the new fluid end design at higher operating pressures. The Blak-JAK PowerLast fluid end operated with lower noise and improved efficiency, compared to conventional fluid ends used in the trial. This improvement was due to design changes that reduced pressure pulses, leading to smoother fluid end operation and decreased demand on the pulsation dampener. This may allow for the use of a smaller dampener in some applications.
In addition, the new fluid end consistently delivered twice the runtime of conventional modules. Expendable consumption declined significantly during the trial, with reductions of 67% in valves, 70% in seats, 55% in pistons, and 17% in zirconia liners. Fewer component replacements translated into lower maintenance costs and reduced nonproductive time (NPT).
Rig crews reported that the Blak-JAK PowerLast fluid end helped them perform maintenance activities more efficiently and with lower safety risks. The fluid end’s smaller size and lighter weight made it easier for crews to access for inspection and valve/seat wash identification. Components like the valve seats could be removed easily and replaced using conventional tools, which reduced downtime and simplified service operations compared to conventional seats.
The deployment of the new fluid end demonstrated clear benefits in extending module life and reducing expendable consumption, compared to conventional designs. The positive results of this initial trial prompted the drilling contractor to add the fluid end to the other two mud pumps on the trial rig. In addition, the new fluid ends were installed in mud pumps on another rig as part of the drilling contractor’s ongoing evaluation.
OPERATIONAL EFFICIENCY AND COST CONSIDERATIONS
Beyond performance improvements, the redesigned fluid end architecture offers meaningful advantages in terms of operational efficiency and cost. Reduced system weight simplifies transportation and installation, while smaller component sizes improve handling and reduce physical strain during maintenance.
Standardization of components across pump platforms reduces inventory requirements and simplifies supply chain management. This can lead to lower carrying costs and improved availability of critical parts.
Improved volumetric efficiency and reduced pressure fluctuations contribute to more consistent pump performance, potentially lowering energy consumption and reducing wear on both fluid end and power end components. Over time, these factors can result in a lower total cost of ownership.
CONCLUSION
While operational challenges related to pump performance are especially evident in high-intensity shale drilling projects, they are not confined to any one basin or application. Similar operating conditions are emerging across various drilling environments, increasing demands on fluid end performance, reliability and serviceability. The shift toward sustained high-pressure, high-utilization operations requires moving beyond incremental improvements toward system-level innovation.
By rethinking valve design and its connection to the overall fluid end shape, it becomes possible to achieve new levels of performance and efficiency while simplifying maintenance and reducing operational complexity.
This approach reflects a broader industry trend toward integrated design solutions that address both technical performance and practical operational considerations. As these concepts continue to evolve, they will play a crucial role in enabling the next generation of drilling operations across various applications.
BRENDAN YOUNG is a product line manager at NOV, where he leads strategy and commercialization for a broad portfolio, including fluid ends, fluid end expendables, washpipes, centrifugal pumps, and dies and inserts. He began his career in engineering within the oil and gas industry, building a strong technical foundation in fluid end systems and drilling equipment. Mr. Young focuses on bridging engineering and market needs, driving product performance, pricing strategy, and customer value across NOV’s drilling portfolio.
BRYCE BROCK, P.E., is a senior manager of Product Engineering at NOV, where he leads engineering teams responsible for a broad portfolio of drilling equipment. With over 20 years of experience at NOV, Bryce brings deep technical expertise in reciprocating pumps and broad experience across drilling systems.
